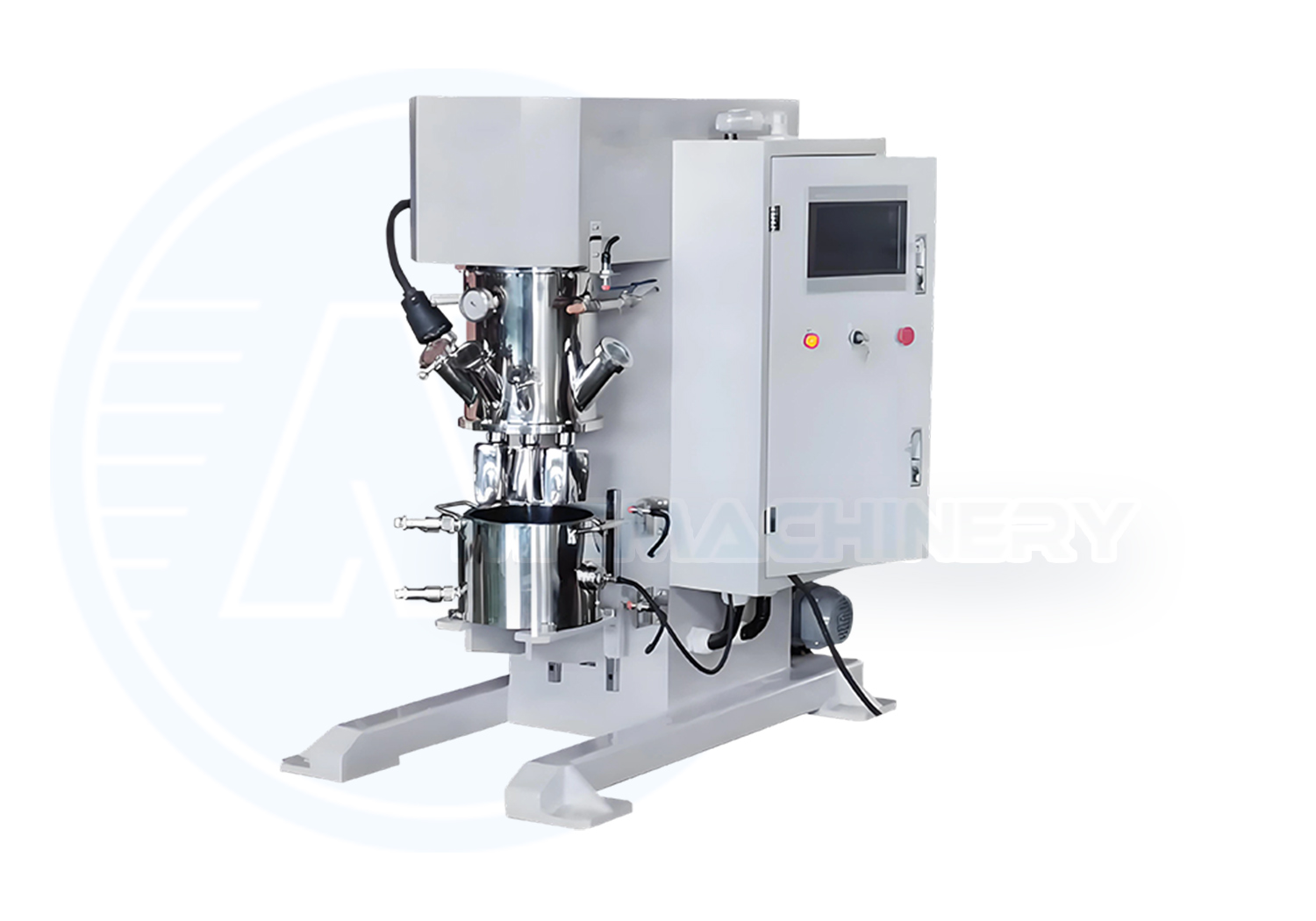

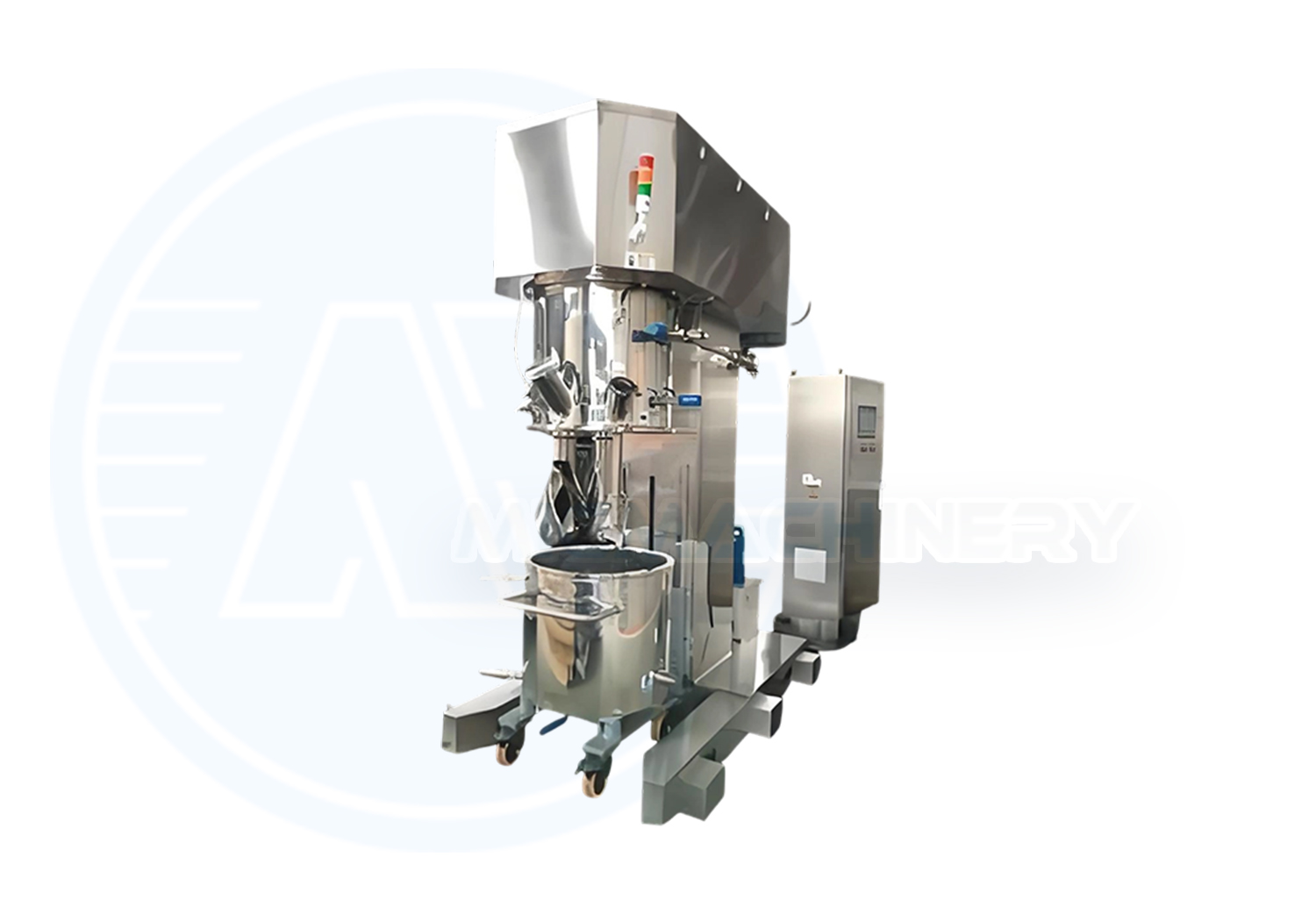

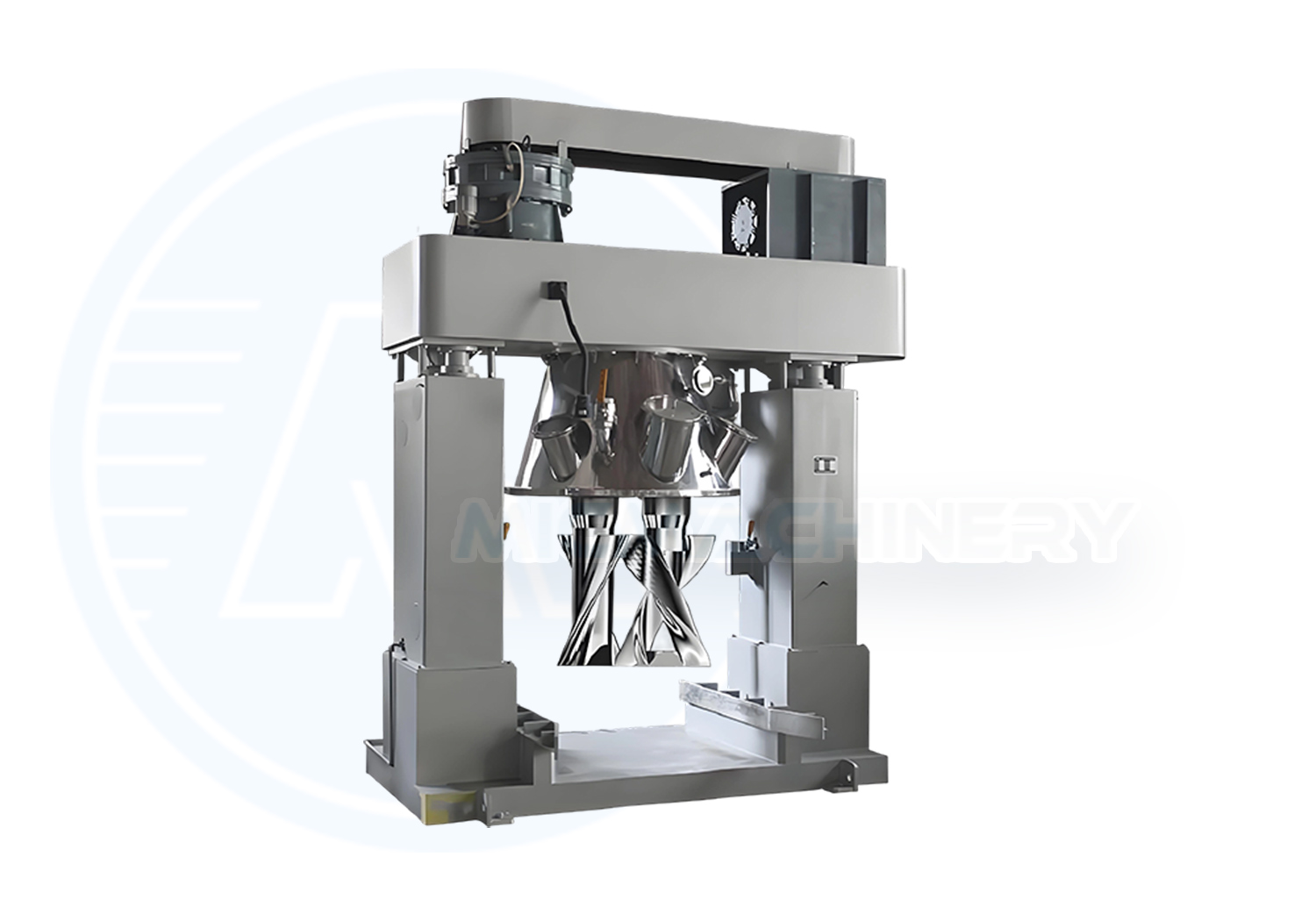

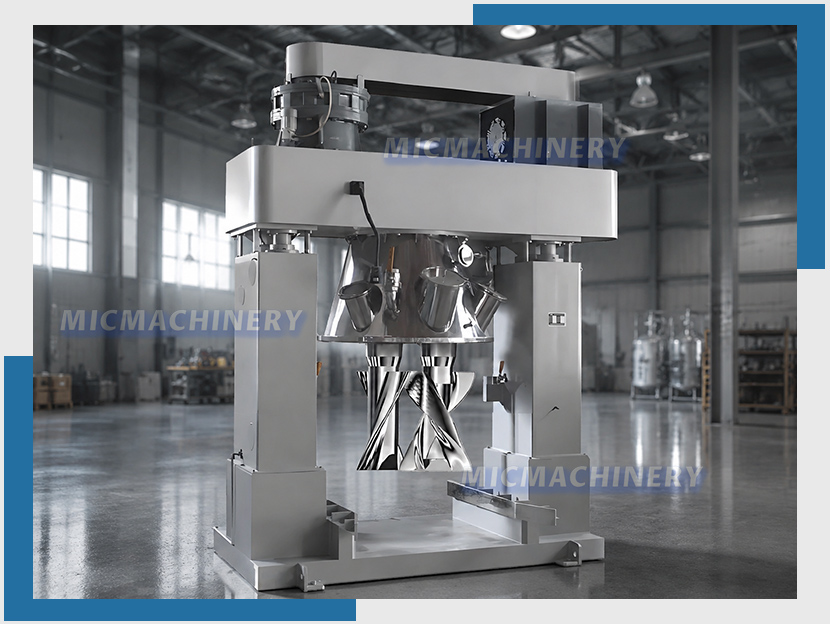

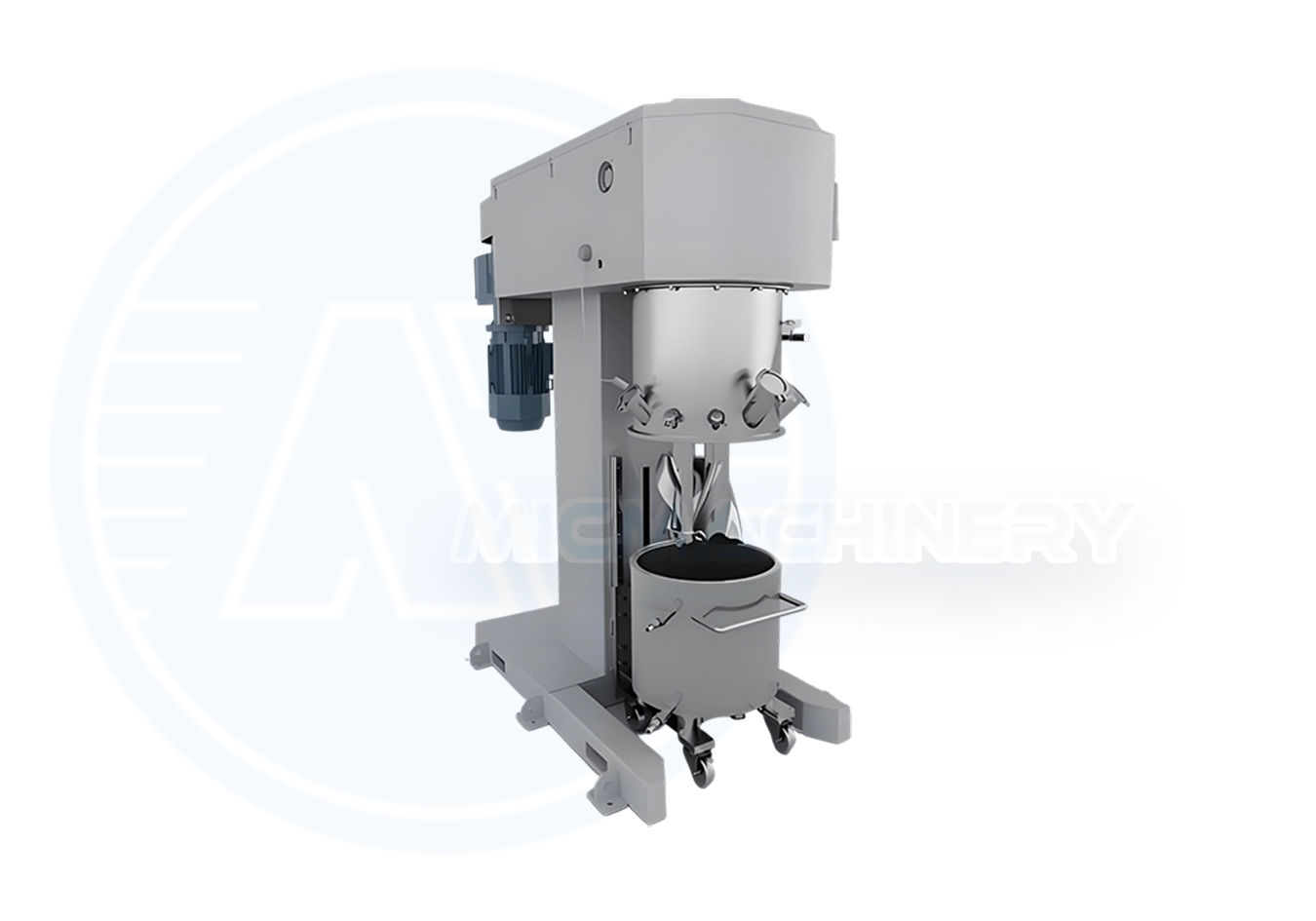

Vertical Kneader for Adhesive Production
A Vertical Kneader is specialized mixing equipment designed for processing high-viscosity materials such as adhesives, sealants, rubber compounds, and chemical materials. It uses powerful kneading forces generated by rotating blades to achieve uniform mixing, dispersion, and plasticizing of difficult-to-process formulations. MIC Machinery provides customized vertical kneading solutions for epoxy adhesives, silicone sealants, polyurethane materials, and other industrial products requiring stable and consistent mixing performance.
Manufacturing Process of Vertical Kneader
The working process of a vertical kneader mainly includes material feeding, kneading and mixing, temperature control, and discharge.
| |
|
|
| |
1）Material Feeding
Raw materials such as resins, fillers, powders, pigments, and additives are loaded into the mixing chamber according to the formulation requirements. The feeding sequence can be adjusted based on material characteristics to improve mixing efficiency and prevent uneven distribution.
-----
2）Kneading and Mixing
3）Temperature Control
Many adhesive formulations require controlled processing temperatures to maintain viscosity and prevent unwanted reactions. The mixing chamber can be equipped with heating or cooling jackets to regulate temperature during operation, ensuring stable processing conditions.
-----
4）Material Discharge
After achieving the required mixing quality, the finished material is discharged through a suitable outlet system. Different discharge methods can be selected according to material viscosity and production requirements, allowing smooth transfer to storage or filling equipment.
|
|
| |
|
|
Technical Advantages of Vertical Kneader
➢ Strong Mixing Capability for High-Viscosity Materials
The vertical kneading structure provides powerful mechanical forces for processing materials that are difficult to mix with standard agitators. It is suitable for adhesives, sealants, and compounds with high viscosity or high filler content.
➢ Uniform Dispersion Performance
The continuous kneading action helps distribute fillers, pigments, and functional additives evenly throughout the material. This improves product consistency and helps maintain stable viscosity, appearance, and application performance.
➢ Efficient Processing of High Solid Content Materials
Some adhesive products contain a large amount of solid fillers, making them difficult to process with ordinary mixing equipment. The strong kneading action of a vertical kneader enables effective blending while maintaining uniform material structure.
➢ Flexible Process Adjustment
Mixing speed, processing time, and temperature conditions can be adjusted according to different formulations. This flexibility allows manufacturers to optimize production parameters for both product development and continuous manufacturing.
Customization Options
Different adhesive formulations require different mixing solutions. MIC Machinery provides customized Vertical Kneader configurations based on material properties, production capacity, and process requirements.
Customization options include chamber volume, blade design, contact material selection, motor power, heating and cooling system, vacuum configuration, and discharge method.
For complete adhesive production systems, MIC Machinery can integrate vertical kneaders with storage tanks, transfer pumps, vacuum systems, and filling equipment to create efficient production workflows from raw material preparation to final packaging.
FAQ
| What is a vertical kneader used for? |
|
A vertical kneader is used for mixing and kneading high-viscosity materials such as adhesives, sealants, rubber compounds, and chemical materials. It provides strong mechanical forces for uniform blending and dispersion.
|
| |
| What materials can be processed by a vertical kneader? |
| Vertical kneaders are suitable for epoxy adhesives, silicone sealants, polyurethane materials, structural adhesives, rubber compounds, and other high-viscosity formulations containing fillers and additives. |
| |
| What is the difference between a vertical kneader and a conventional mixer? |
| A vertical kneader uses strong compression, shearing, and folding forces to process highly viscous materials, while conventional mixers are generally designed for lower-viscosity products with easier flow characteristics. |
| |
| How should I select a vertical kneader for adhesive production? |
| Selection depends on material viscosity, batch size, filler content, production capacity, temperature requirements, and discharge conditions. The equipment should be selected according to the complete manufacturing process. |
| |
| Can MIC Machinery customize a vertical kneader? |
| Yes. MIC Machinery provides customized vertical kneader solutions based on customer formulations, production requirements, and factory conditions, including equipment configuration and production line integration. |
